IRISS CAP Series Infrared Windows

The CAP-CT Series has the largest visually clear infrared (IR) transmissive viewing area available. The exclusive pharmaceutical-grade reinforced Poly-View System™ polymer allows any thermography camera to monitor completely undisturbed assets inside energized electrical equipment in the visual, UV and shortwave, midwave and longwave IR spectrums. The larger rectangular viewing area provides an unparalleled field of view when compared to traditional round IR windows. The CAP-CT offers locking covers for your IR window. These are useful in areas of high traffic and protect the IR viewing panes from impacts, flying debris and dust. Constructed from aluminum, the CAP-CT series is recommended for all indoor applications.

The industrial-grade reinforced CAP-CT-PDS is a revolutionary inspection window. It combines the power of Thermal imaging, Visual, UV, Ultrasound and Partial Discharge inspections. Industrial applications require solutions that meet numerous criteria where safety and performance are of the upmost importance. The exclusive pharmaceutical-grade reinforced polymer system allows any thermography camera to monitor completely undisturbed assets inside energized electrical equipment in the visual, UV and shortwave, midwave and longwave IR spectrums.

The CAP-ENV features a reinforced environmentally sealed door design while also providing the largest visually clear infrared (IR) transmissive viewing area available on the market today. The exclusive reinforced polymer system allows any thermography camera to monitor completely undisturbed assets inside energized electrical equipment in the visual, UV and shortwave, midwave and longwave IR spectra. The larger rectangular viewing area provides an unparalleled field of view when compared to traditional round IR windows. Constructed completely from stainless steel, the CAP-ENV series is recommended for outdoor applications.

The CAP-ENV-PD features a reinforced environmentally sealed door design while also providing a large visually clear infrared (IR) transmissive viewing area. The CAP-ENV-PD also comes equipped with a versatile port for ultrasound inspections – an ideal way to identify electrical faults. Initially developed for MV transformer and switchgear applications. The CAP-ENV-PD is a perfect combination solution for medium and high voltage applications where both IR and Ultrasound inspection is desired.

The environmentally reinforced CAP-ENV-PDS is a revolutionary inspection window. It combines the power of Thermal imaging, Visual, UV, Ultrasound and Partial Discharge inspections. Industrial applications require solutions that meet numerous criteria where safety and performance are of the upmost importance. The exclusive pharmaceutical-grade reinforced polymer system allows any thermography camera to monitor completely undisturbed assets inside energized electrical equipment in the visual, UV and shortwave, midwave and longwave IR spectrums.

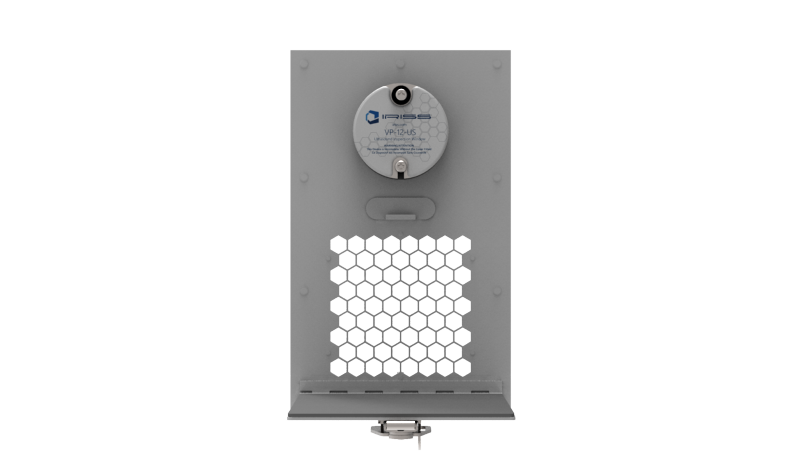

The CAP-CT-4-US infrared window equipped with a versatile port for ultrasound inspections is the ideal way to identify electrical faults. Industrial applications require solutions that meet numerous criteria where safety and performance are of the upmost importance. To accommodate this demand, IRISS took their transparent, CAP-CT-4 and opaque, CAP-C-4, and added the benefits of ultrasound (US) inspection to the window. The award-winning, CAP-CT-4-US comes equipped with a square 4” IR window and an US port both on one easy-to-install panel. The viewing area of the CAP-4-US offers a 30% increase in FOV over round windows but also provides a method for accessing quality acoustics data that easily identifies potentially hazardous faults such as arcing, tracking and corona in electrical distribution systems and switchgear.
