$54.99 – $3,309.00
FLIR Ex Series Thermal Imagers
FLIR Ex-Series cameras are powerful troubleshooting tools for building, electrical, and mechanical applications. The Ex-Series has models to fit your target size, working distance, visual detail needs and budget.

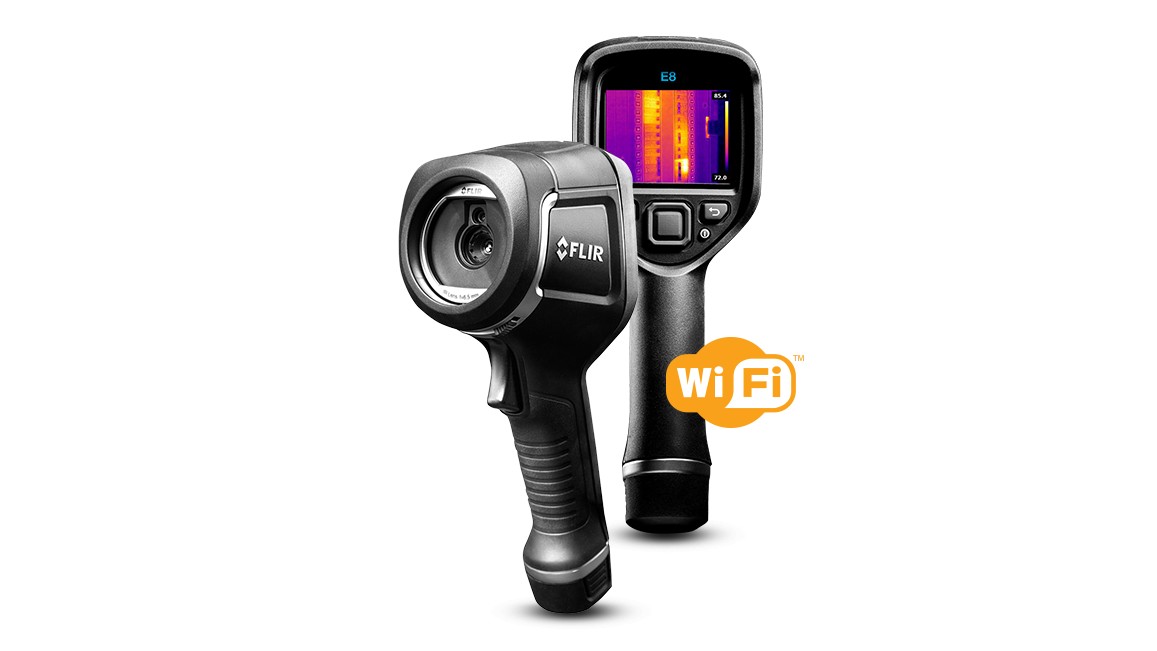

FLIR E8-XT
The FLIR E8-XT has a 320 x 240 (76,800 pixel) resolution with a temperature range of -4°F to 1022°F. The built-in Wi-Fi allows users to quickly connect with FLIR software for sharing images and sending reports easily from any location.
FLIR E6-XT
The FLIR E6-XT has a 240 x 180 (43,200 pixel) resolution with a temperature range of -4°F to 1022°F. The built-in Wi-Fi allows users to quickly connect with FLIR software for sharing images and sending reports easily from any location.

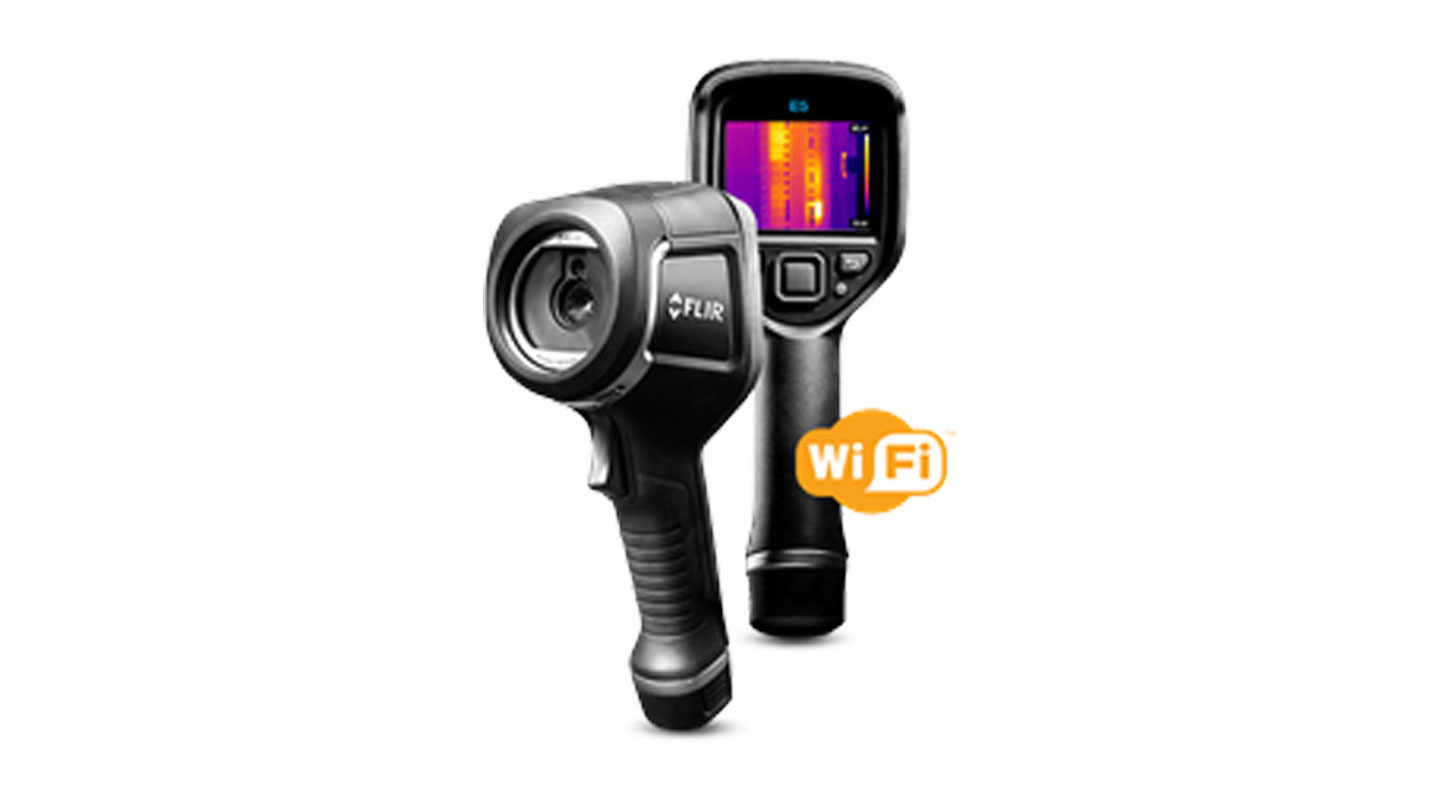

FLIR E5-XT
The FLIR E5-XT has a 160 x 120 (19,200 pixel) resolution with a temperature range of -4°F to 752°F. The built-in Wi-Fi allows users to quickly connect with FLIR software for sharing images and sending reports easily from any location.
Electrical
Ex-Series offers a more professional thermal imaging solution for troubleshooting abnormal high temperatures on breakers, fuses and connections.
Building
With Ex-Series’ functionality and sensitivity, you’ll see the invisible better and spot problems faster. Locate structural issues, energy waste, moisture intrusion and even nesting pests.
HVAC
With an Ex-Series camera in your toolbox, you’ll be able to track down heating and cooling system duct disconnects, mechanical wear and refrigerant issues quickly.
| FLIR Ex-XT Series Specifications | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| IR Resolution | E8-XT - 320 × 240 (76,800) pixels |
| Field of view (FOV) | 45° × 34° |
| Object Temperature Range | E8-XT - Up to 1022°F |
| Thermal Sensitivity/NETD | E8-XT - <0.05°C (0.09°F) / <50 mK E6-XT - <0.06°C (0.11°F) / <60 mK E5-XT - <0.10°C (0.27°F) / <100 mK |
| FLIR Screen-EST Mode | No |
| Battery Operating Time | Approx. 4 hours |
