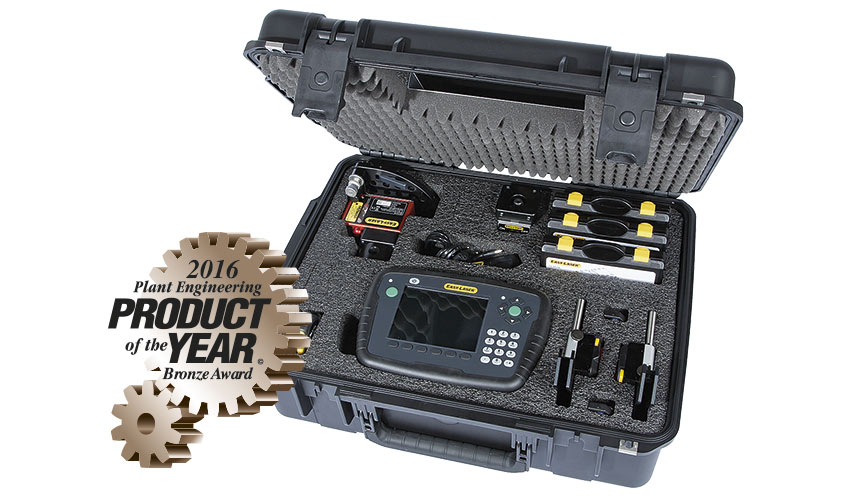

Easy-Laser E720 – Shaft Alignment/GEO System (Demo Unit)
Easy-Laser® E720 is the all-in-one alignment solution for the maintenance technician and millwright. It does not just give you all the functions for shaft alignment, it also gives the opportunity to check the machine base and levelness.
Machine set-up most often starts with the foundation. If the foundation is level and flat you will have less problems with the rest of the installation and alignment of the machine. With Easy-Laser® E720 you not only get all the functions and features for the alignment of the machine, but also possibilities to perform the following:
- Measure the flatness of the foundation
- Check plane parallelism for several surfaces on large machines
- Measure flatness for a single machine foot support surface
- Align the foundation level and plumb
- Align pipes straight and square
The measuring units included with system E720 uses point laser and PSD technology. This is the reason it can be used in so many more places in your operations than just to align the shafts of rotating machinery.
Measurement programs are included
Programs for Horizontal machines, Soft foot checks, Machine trains, Vertical/flange mounted and Cardan/offset mounted machines are included. Furthermore programs for Straightness, Flatness/Twist, Level and Parallelism measurement are included, to mention just a few. Using accessories you can also align sheaves/pulleys with digital precision.
Easy to use = fast and efficient
When we talk about simplicity we mean several things, for example, simple to place or mount the measurement equipment on the measurement object, easy to perform the measurement and easy to interpret the measurement result. With Easy-Laser® E720 you can measure all types of rotating machinery, large and small, equally well, regardless of shaft diameter.
Wireless measuring units (laser/detector) enable you to work more freely. The measurement values can be registered with only 40° rotation of the shafts. You can then align it ”live” using the measuring units in any position around the shaft. The read off unit program is available in several different languages which facilitates use. The programs guide you step-by-step through the measuring procedure for the perfect measuring result.
Horizontally mounted machines often consist of a pump and a motor, but can also include other types of machines such as gearboxes and compressors. Regardless of the machine type, it is easy to measure and align with Easy-Laser®. The measuring units (M and S) are easily mounted on each side of the coupling and communicate with the display unit wireless.
Vertical/flange mounted machines
This program is used for alignment of vertical and flange-mounted machines, i.e. pumps, motors, gear boxes. Shows center offset, angular error and shim value at each bolt.
Regardless of what machines you have and in which order they were assembled, you can build your own machine train with theoretically as many machines as you like. You can pick the reference machine manually, or let the program choose one that will minimize the need for adjustments.
